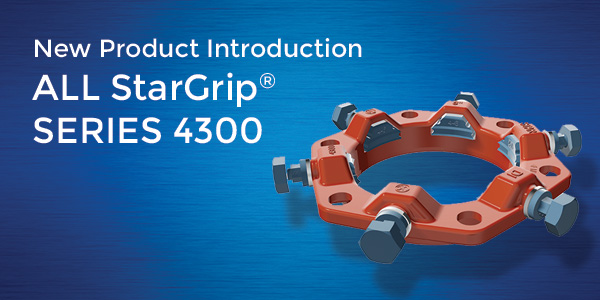

Introducing Star Pipe Products New ALL StarGrip® Series 4300
| March 2018 |
 |
 |
The ALL StarGrip® Series 4300 mechanical joint wedge action restraint connects plain end ductile, steel, PVC, PVCO or HDPE pipe to MJ fittings.
|
|
| PRODUCT SPECS: |
| » | The color of the restraint gland is orange, to differentiate it from all other Star Pipe wedge restraint products. |
| » | These can be used on CI OD regimen pipes, specifically ductile, C900 PVC, C909 PVCO and HDPE. |
| » | It can also be used on IPS OD regimen pipes, specifically Schedule 40 and heavier steel pipe, ASTM D2241 PVC and HDPE, but will require MJ transition gaskets. Stainless steel stiffeners are required for use with HDPE pipe. |
| » | Listed with UL and ULC for sizes 4" - 12" for use on ductile iron and steel pipe. |
| » | FM Approved for sizes 4"-12" for use on C900 PVC pipe. |
| » | Gland is made from high strength Ductile Iron per ASTM A536 Grade 65-45-12 and is compatible with all Mechanical Joints conforming to ANSI/AWWA C111/A21.11. |
| » | The wedges are heat treated to a minimum of 370 BHN. |
|
| SIZE RANGE: | Available in sizes 4" through 12" |
| RESTRAINT GLAND COATING: | Comes standard with Multi-Coat (alkyd enamel) Available in either Black Asphaltic seal coat or Fusion Bonded Epoxy (FBE) |
| GASKET OPTIONS: | • Comes standard with styrene butadiene rubber (SBR) gaskets
• Optional gaskets are available in EPDM, Neoprene, Nitrile or Viton |
| HARDWARE OPTIONS: | • Comes standard with high strength low alloy steel t-head bolts in accordance with ANSI/AWWA C111/A21.11
• Optional hardware available in 304SS, 316SS and Star-Blue Fluoropolymer
|
|
